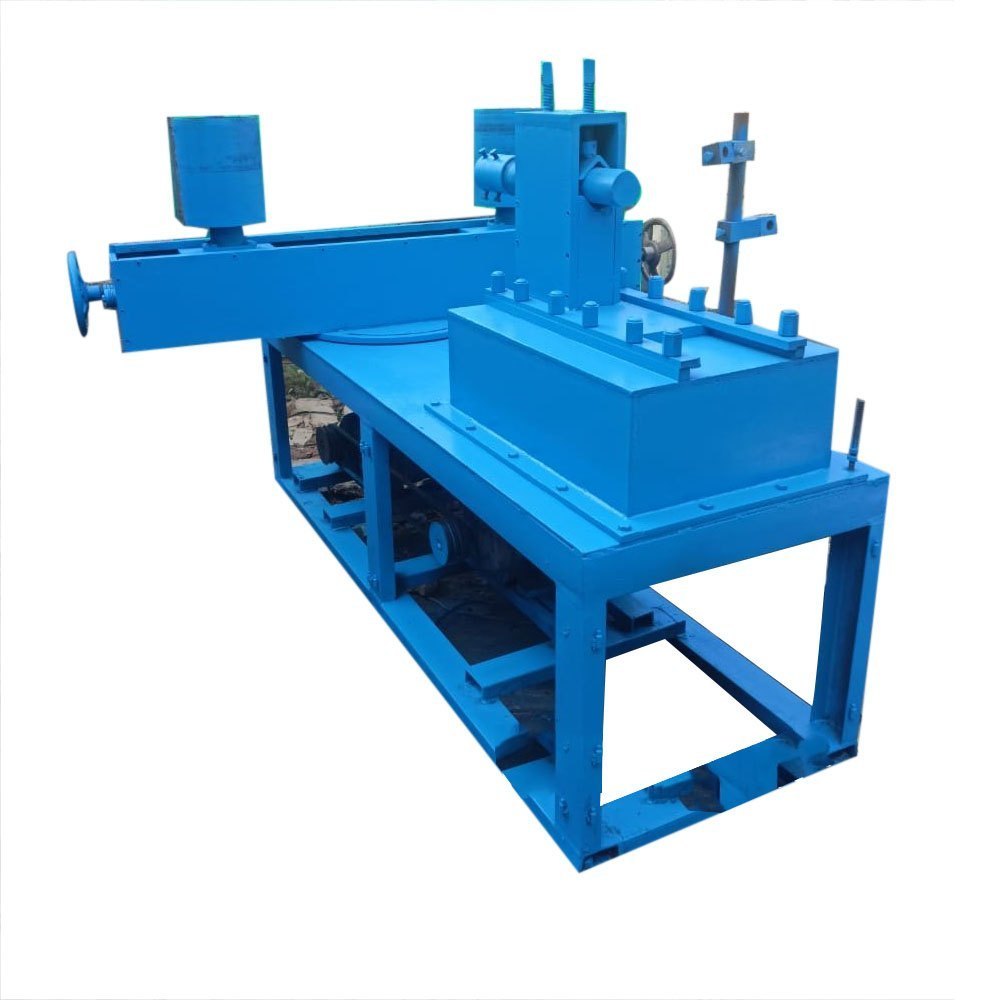

Send Inquiry1000 Tubes/hr Paper Tube winding Machine
Price 250000.0 INR/ Piece
MOQ : 1 Piece
1000 Tubes/hr Paper Tube winding Machine Specification
- Drive Motor
- Single/Three Phase
- Product Type
- Industrial Tube Forming Machine
- General Use
- Production of Paper Tubes for Packaging and Industrial Applications
- Material
- Mild Steel, Industrial-Grade Steel
- Type
- Paper Tube Making Machine
- Capacity
- 1000 Tubes per Hour
- Weight (kg)
- Approx. 850 kg
- Computerized
- No
- Automatic
- Semi-Automatic
- Cutting Speed
- 1000 tubes/hr
- Cutting Thickness
- 1 mm to 8 mm (Depending on Paper Layer)
- Cutting Function
- Manual/Automatic (Depending on Configuration)
- Cooling System
- Air Cooled
- Drive Type
- Belt Driven (Electric Motor)
- Voltage
- 220V-380V (As per Client Requirement)
- Dimension (L*W*H)
- 2500 mm x 950 mm x 1200 mm (Approx.)
- Feature
- High Productivity, Robust Construction, Easy to Operate
- Color
- Industrial Blue (Customizable)
- Motor
- 3 HP Electric Motor
- Mechanical Precision
- 1.0 mm
- Software Detail
- N/A (Manual/Mechanical Operation)
- Cutting Method
- Rotary Cut/Manual Cut
- Control System
- Manual & Electric Switchboard
- Cutting Area
- Adjustable, for standard tube lengths
- Cutting Material
- Kraft Paper, Corrugated Board
- Speed Control
- Variable Speed (AC Drive)
- Sheet Layering Station
- Integrated for Multi-ply Tube Production
- Safety Feature
- Emergency Stop Button, Guarded Drive Train
- Adhesive System
- Glue Application System Included
- Mandrel Change Time
- Approx. 5 Minutes
- Packaging
- Standard Export Wooden Packing
- Operational Temperature
- 5C to 50C
- Noise Level
- Less than 80 dB
- Tube Diameter Range
- 20 mm to 120 mm (Customizable)
- Tube Wall Thickness
- Up to 8 mm
- Power Consumption
- Approx. 2.5 kW/hr
- Working Humidity Range
- Up to 85% RH
- Floor Space Requirement
- 3.5 m2
- Installation Support
- On-site Installation & Operator Training Provided
About 1000 Tubes/hr Paper Tube winding Machine
1000 Tubes/Hr Paper Tube Making Machine
The 1000 Tubes/Hr Paper Tube Making Machine is a high-speed industrial production machine designed for manufacturing high-quality spiral paper tubes and paper cores with excellent strength, accuracy, and consistency. With a production capacity of up to 1000 tubes per hour, the machine is ideal for large-scale manufacturing operations requiring high productivity and continuous production.
The machine utilizes an efficient spiral winding process to form multiple layers of paper into rigid and durable tubes. Advanced winding and adhesive application systems ensure strong bonding between paper layers, uniform tube formation, and consistent product quality.
Key Features
- High production capacity of up to 1000 tubes per hour
- High-speed spiral paper tube winding system
- Robust and heavy-duty machine construction
- Uniform paper winding and excellent layer bonding
- Accurate tube diameter and wall thickness
- Consistent cutting and tube length
- High-speed continuous production
- Efficient adhesive application system
- Reduced material wastage
- Lower labour requirements
- Easy operation and maintenance
- Suitable for long-duration industrial use
- Machine configuration can be customized according to production requirements
Production Process
Paper Roll Feeding Adhesive Application Spiral Winding Tube Formation Sizing/Pressing Cutting Finished Tube Collection
Applications
The machine is suitable for manufacturing paper tubes and cores used in:
- Textile and yarn industries
- Paper and printing industries
- Plastic film and flexible packaging
- Adhesive tape manufacturing
- Aluminium foil and stretch film
- Label and printing industries
- Tissue and paper products
- Packaging applications
- Industrial winding applications
Advantages
The 1000 Tubes/Hr Paper Tube Making Machine helps manufacturers achieve high production output while maintaining consistent tube quality and dimensional accuracy. Its high-speed operation and efficient winding system make it an excellent choice for industries requiring large-volume paper tube production with reduced manual intervention.
Technical Highlights
- Production Capacity: Up to 1000 Tubes/Hr
- Machine Type: Automatic / High-Speed Paper Tube Making Machine
- Winding Type: Spiral Winding
- Product: Spiral Paper Tube / Paper Core
- Production: Continuous
- Application: Industrial & Packaging
- Construction: Heavy-Duty
- Tube Size: Customizable as per requirement
- Automation: High-Speed Production System
- Customization: Available according to tube diameter, wall thickness, and length
High-Efficiency Tubing for Versatile Applications
Designed to handle a broad diameter range, this machine supports customization to match your packaging or industrial requirements, ensuring you can manufacture specialized and standard tubes efficiently. Its robust construction and high throughput make it a dependable choice for busy production environments.
User-Friendly Operation with Enhanced Safety
With approximately 5-minute mandrel changeover, intuitive manual and electric control, and integrated emergency stop, this machine prioritizes ease of use and safety. The guarded drive train and ergonomic layout make daily operation straightforward even for new operators.
Reliable Performance with Minimal Maintenance
Built with industrial-grade mild steel and a belt-driven electric motor, the machine boasts durability and consistent output. The air-cooled system helps maintain optimal performance across varying conditions, while the simple mechanical structure means maintenance downtime is kept to a minimum.
FAQ's of 1000 Tubes/hr Paper Tube Making Machine:
Q: How does the paper tube making process work on this machine?
A: The machine feeds paper sheets through a layering station, applies glue for multi-ply construction, and forms the tube around a mandrel. Tubes are then cut to length either manually or automatically, depending on configuration.Q: What tube sizes and wall thicknesses can the machine produce?
A: It supports tube diameters from 20 mm to 120 mm (customizable) with wall thicknesses up to 8 mm, ideal for a variety of packaging and industrial uses.Q: When should I change the mandrel, and how long does it take?
A: You should change the mandrel when switching tube diameters. The process is efficient, taking approximately 5 minutes to complete.Q: Where can this machine be installed, and what are the space requirements?
A: The machine is suitable for factory settings and requires a floor space of approximately 3.5 m2, fitting most industrial production layouts.Q: What safety features are included for operator protection?
A: Safety measures include an emergency stop button, a guarded drive train, and clear safety labeling, ensuring secure operation at all times.Q: How is speed controlled, and what is the maximum production capacity?
A: Speed is managed using a variable AC drive, allowing precise adjustment. The machine delivers up to 1000 tubes per hour for high-volume operations.Q: What are the benefits of using this paper tube making machine?
A: Users benefit from high productivity, robust build quality, customizable tube production, easy operation, and low noise levels, all within a compact and efficient design.
