Send Inquiry10 Ton/Day Paper Edge Protector Machine
Price 149999.0 INR/ Piece
MOQ : 1 Piece
10 Ton/Day Paper Edge Protector Machine Specification
- Type
- Automatic Paper Edge Protector Machine
- Material
- Paper, Kraft Paper
- Capacity
- 10 Ton/Day
- Computerized
- Yes
- Cutting Speed
- 60-120 cuts/min (adjustable)
- Cutting Size
- Customized as per requirement
- Cutting Thickness
- 2 mm - 8 mm
- Voltage
- 380V/415V, 3 Phase, 50Hz
- Power
- 7.5 kW
- Weight (kg)
- 2100 kg
- Dimension (L*W*H)
- 4500 mm x 1800 mm x 1600 mm
- Color
- Blue & White
- Glue System
- Automatic Glue Application
- Application
- Paper Edge Protection Manufacturing, Packaging Industry
- Production Line
- Continuous Processing
- Operator Panel
- LCD Display with Push Buttons
- Noise Level
- 75 dB
- Max Roll Width
- 200 mm
- Automation Level
- Fully Automatic
- Max Roll Diameter
- 1000 mm
- Main Frame Material
- Heavy Duty Mild Steel Structure
- Installation Service
- Available on Request
- Machine Safety
- Emergency Stop Switch, Overload Protection
- Drive Type
- Servo Motor Driven
- Compressed Air Requirement
- 0.6 MPa
- Edge Angle Range
- 30 - 90 adjustable
- Hydraulic System
- Heavy Duty Hydraulic Press
About 10 Ton/Day Paper Edge Protector Machine

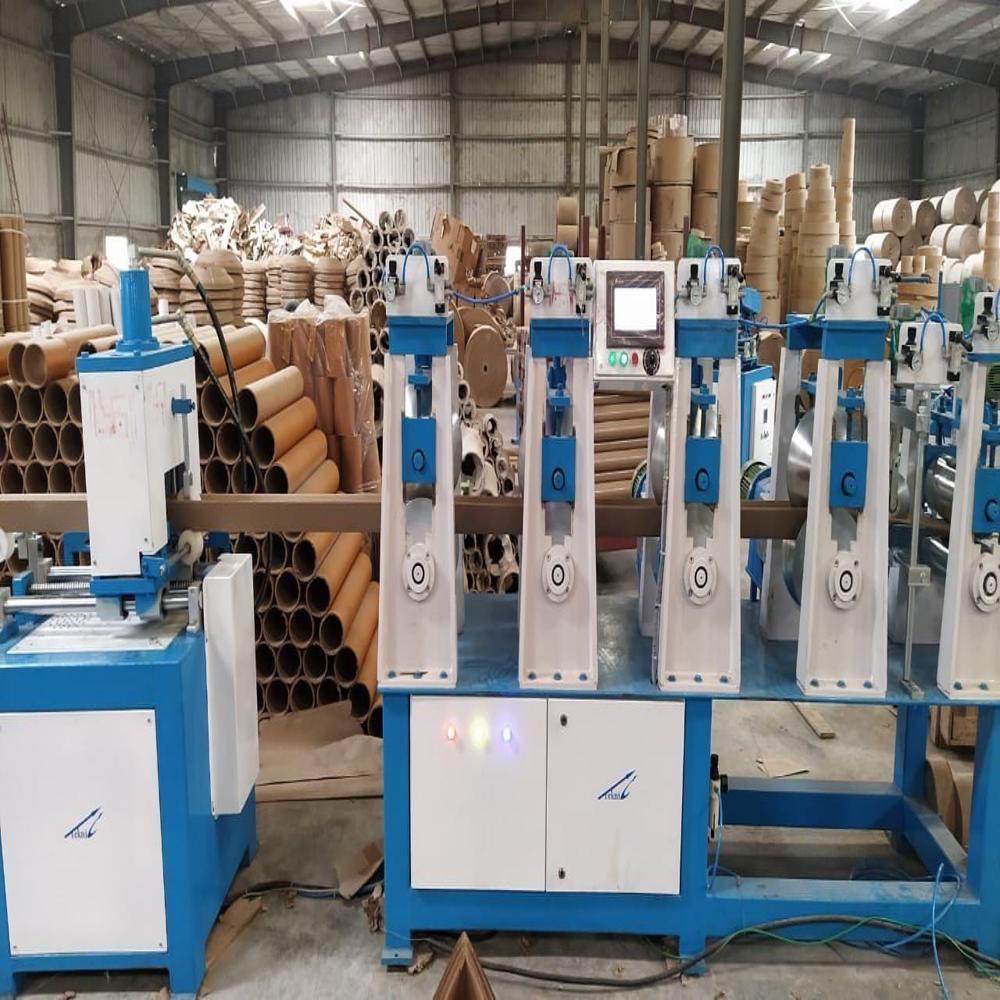

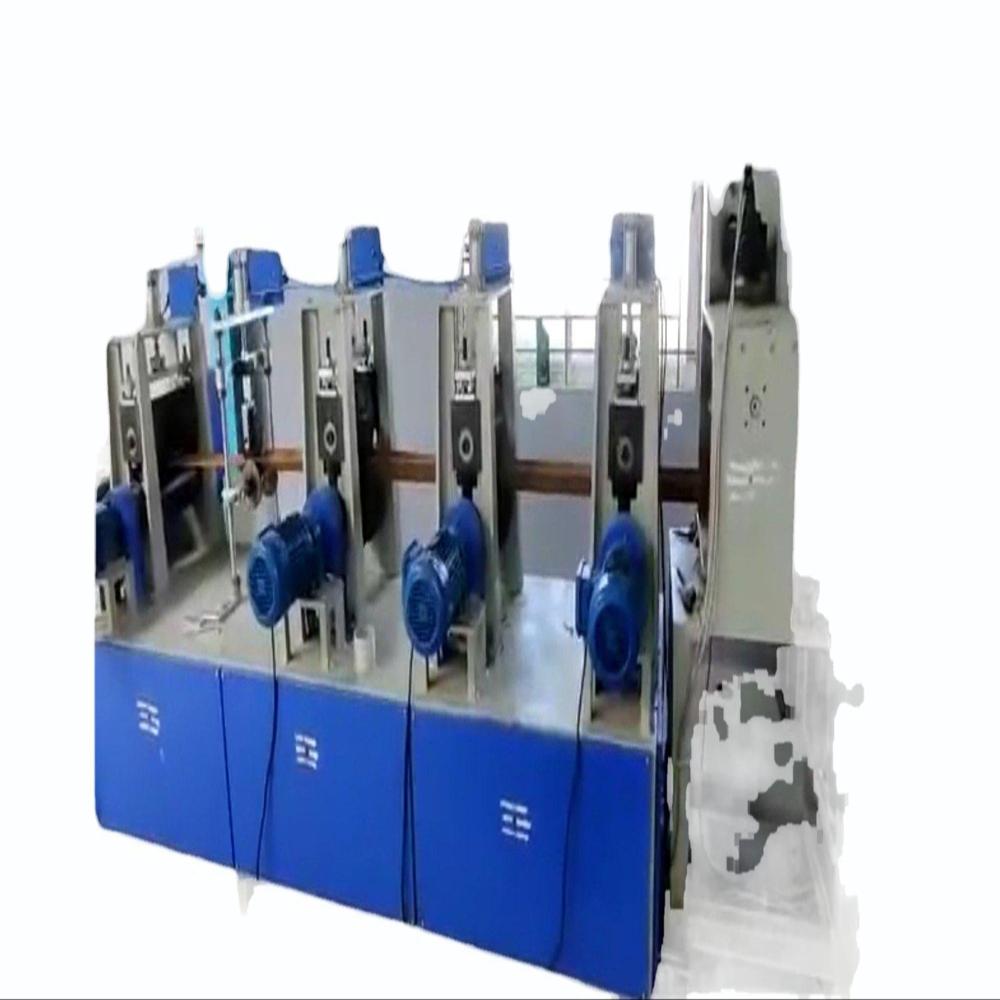

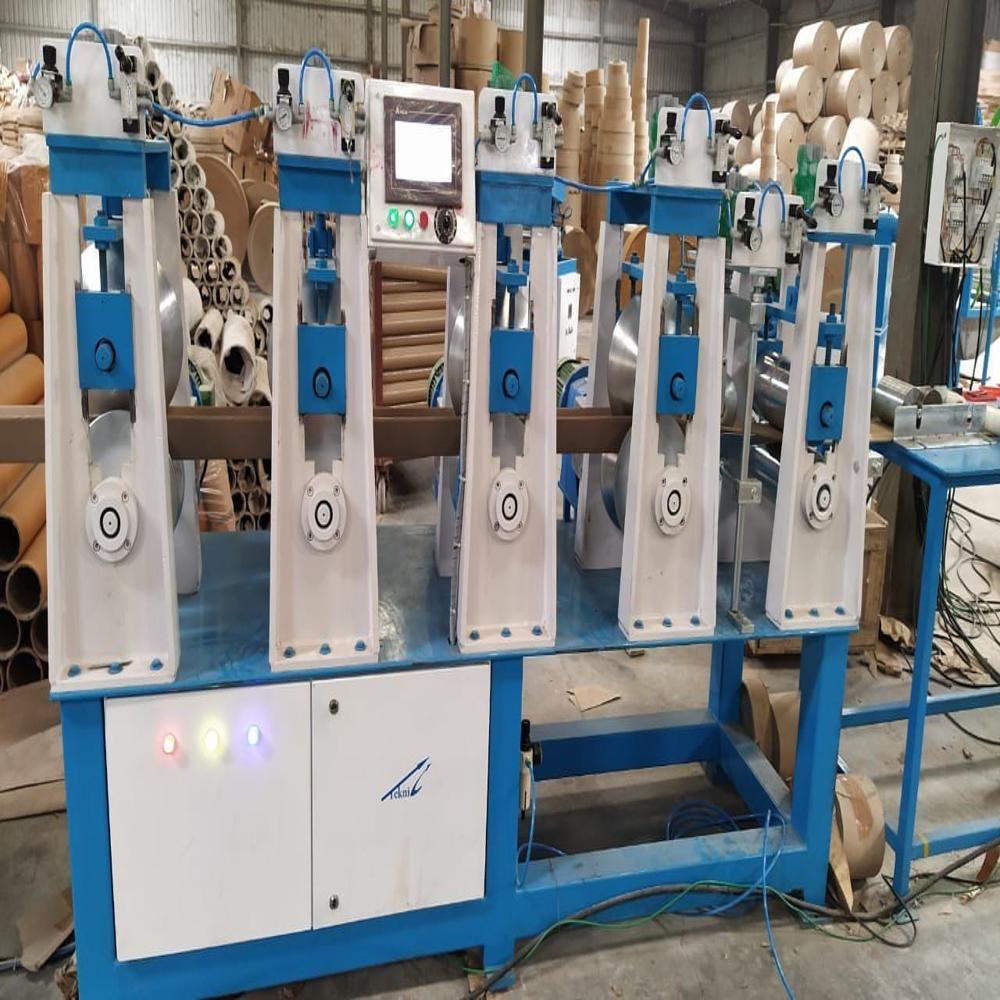

10 Ton/Day Paper Edge Protector Machine
The 10 Ton/Day Paper Edge Protector Machine is a high-capacity, fully integrated production system designed for manufacturing strong and durable paper edge protectors (paper corner boards) used for protecting the edges and corners of products during storage, handling, and transportation.
With a production capacity of up to 10 tons per day, the machine is engineered for continuous and efficient operation. It combines paper feeding, adhesive application, paper laminating, forming, pressing, cutting, and finishing processes into a streamlined production line, ensuring consistent product quality and high productivity.
The machine is suitable for manufacturing L-shaped, V-shaped, and other customized paper edge protectors in different widths, thicknesses, and lengths according to customer requirements.
Key Features
- High production capacity of up to 10 Ton/Day
- Heavy-duty and robust machine construction
- Continuous automatic production process
- Uniform adhesive application and strong paper bonding
- Precise forming and accurate cutting
- Adjustable product width, thickness, and length
- Consistent dimensional accuracy
- High production efficiency with reduced labour requirements
- Low material wastage
- Easy operation and maintenance
- Suitable for long-duration industrial production
- Customized configurations available according to production requirements
Production Process
The machine performs the complete manufacturing process through multiple stages:
Paper Unwinding Adhesive Application Paper Laminating Forming Pressing Cutting Collection
Applications
Paper edge protectors manufactured by this machine are widely used in:
- Furniture and plywood industries
- Glass and ceramic packaging
- Steel and aluminium products
- Home appliances
- Electronics and machinery
- Paper and printing products
- Logistics and transportation
- Export packaging
- Palletized goods
- General industrial packaging
Advantages
The 10 Ton/Day Paper Edge Protector Machine provides high production output, excellent bonding strength, accurate forming, and consistent product quality. It is an ideal solution for manufacturers looking to establish or expand a high-volume paper edge protector production facility while reducing manual labour and operating costs.
Technical Highlights
- Production Capacity: Up to 10 Ton/Day
- Product: Paper Edge Protector / Paper Corner Board
- Production Type: Continuous
- Operation: Automatic
- Product Shape: L / V / Customized Profiles
- Application: Industrial & Export Packaging
- Construction: Heavy-Duty Industrial Design
- Customization: Available as per production requirements
Advanced Automation & Control
This paper edge protector machine combines a fully automatic system with advanced PLC control and an intuitive LCD panel, ensuring seamless operations and precise adjustments. Operators can easily manage parameters for cuts and angles, enhancing both productivity and convenience. The touch screen interface streamlines setup and diagnostics, delivering reliability in every cycle.
Robust Construction for Maximum Output
Built from heavy-duty mild steel, this machine is engineered for industrial durability and consistent, 24/7 operations. The hydraulic press guarantees strong, accurate edge protector formations, while servo motor drives deliver smooth, efficient motion. Its continuous processing capability supports large-scale production demands, hitting up to 10 tons per day.
Versatile and Customizable Production
The machine offers versatility by accommodating various cutting sizes and thicknesses, customized per specific packaging requirements. It handles paper and kraft paper materials, produces edge angles adjustable from 30 to 90, and ensures noise levels do not exceed 75 dB. Adaptability and precision are at the forefront, making it ideal for diverse packaging needs.
FAQ's of 10 Ton/Day Paper Edge Protector Machine:
Q: How does the automatic glue application system benefit production?
A: The automatic glue application system ensures consistent adhesive distribution on the paper, significantly reducing manual labor, minimizing wastage, and improving the overall bonding strength of the edge protectors for reliable packaging results.Q: What is the process for adjusting the cutting size and angle?
A: Operators can customize the cutting size and adjust the edge angle between 30 and 90 degrees directly from the PLC touch screen interface, allowing quick changes to suit different packaging specifications without extensive downtime.Q: Where can this paper edge protector machine be installed?
A: The machine is suitable for industrial settings such as packaging manufacturing plants or suppliers servicing high-volume packaging needs. Installation support is available upon request, ensuring optimal setup and operation.Q: When should maintenance be performed on the machine?
A: Routine maintenance, such as checking hydraulic systems, cleaning glue units, and inspecting servo drives, should be performed according to the manufacturer's guidelines or upon reaching recommended operating hours to ensure smooth, uninterrupted production.Q: What materials can be processed with this machine?
A: This model is designed for processing paper and kraft paper materials, offering robust, eco-friendly edge protectors suitable for various types of packaging applications.Q: How does the machine ensure operator safety during use?
A: The machine incorporates essential safety features, including an emergency stop switch and overload protection, safeguarding operators against accidents and machine damage during operation.
