Send Inquiry1000 kg/hr spiral Paper Core Machine
Price 300000.0 INR/ Unit
MOQ : 1 Unit
1000 kg/hr spiral Paper Core Machine Specification
- Grade
- Industrial
- Type
- Automatic Spiral Paper Core Machine
- Material
- Mild Steel (MS) & Stainless Steel (SS)
- Capacity
- 1000 kg/hr
- Computerized
- Yes
- Control System
- PLC Control Panel
- Cutting Speed
- 15 TO 20 m/m
- Cutting Size
- Customizable (typically 50 mm to 1000 mm length)
- Cutting Thickness
- COSTUMIZED Meter
- Voltage
- 380V / 415V, 3 Phase, 50Hz
- Power
- 5.5 KW
- Weight (kg)
- Approx. 1500 kg
- Dimension (L*W*H)
- 2250 mm x 1500 mm x 1800 mm
- Color
- Red & White
- Installation Support
- Onsite Installation & Training Provided
- Noise Level
- 80 dB
- Safety Features
- Emergency Stop, Overload Protection
- Adhesive System
- Automatic Gluing System
- Paper Core Diameter Range
- 20 mm to 200 mm
- Drive System
- Heavy Duty Gear Motor
- Applications
- Textile Cones, Paper Tubes, Film Rolls, Label Rolls
- Operator Requirement
- 1 Operator
- Core Finishing
- Smooth Surface Finish
- Number of Ply
- Up to 7 Ply
About 1000 kg/hr spiral Paper Core Machine

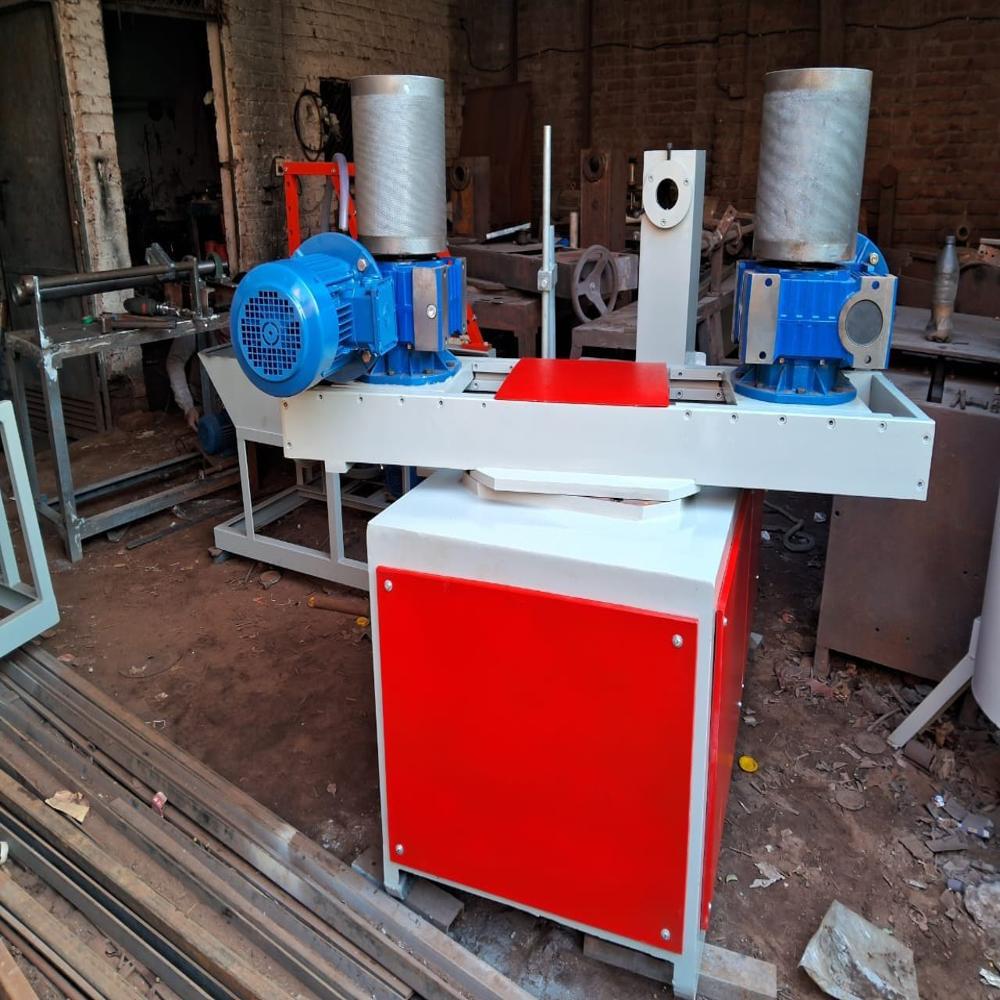

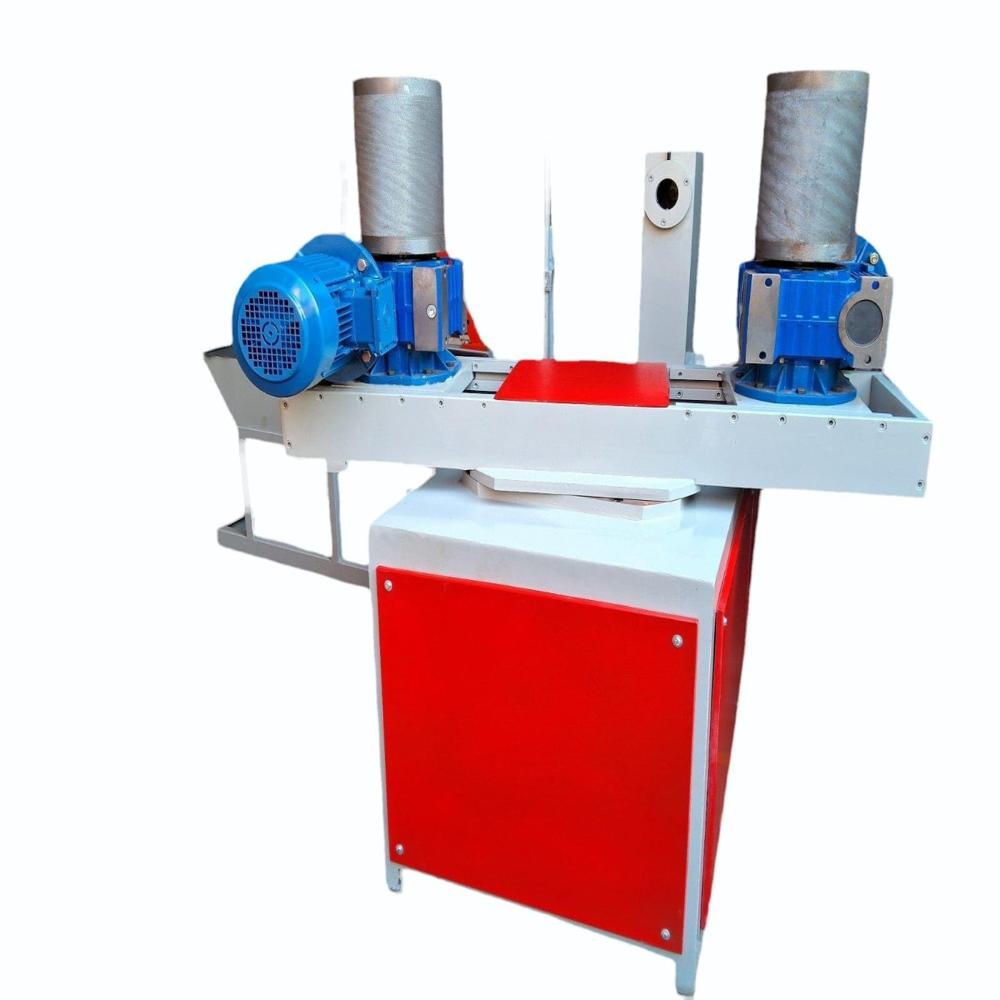

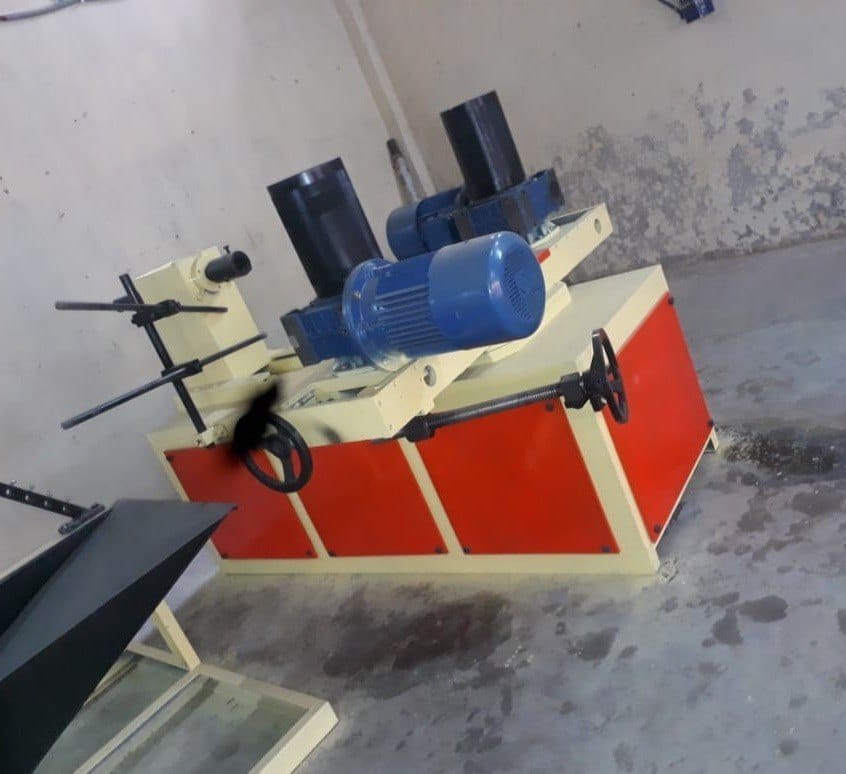

1000 Kg/Hr Spiral Paper Core Machine
The 1000 Kg/Hr Spiral Paper Core Machine is a high-capacity industrial machine designed for the continuous production of strong, uniform, and high-quality spiral paper cores. With a production capacity of up to 1000 kg per hour, the machine is suitable for large-scale manufacturing requirements in paper, packaging, textile, printing, film, tape, and other industries.
The machine uses a spiral winding process to convert paper strips into rigid paper cores with excellent dimensional accuracy and bonding strength. Its robust construction, reliable drive system, and efficient production mechanism make it suitable for continuous industrial operation.
Key Features
- High production capacity of up to 1000 Kg/Hr
- Spiral winding technology for strong and uniform paper cores
- Heavy-duty and durable machine construction
- Consistent tube diameter and wall thickness
- Strong adhesive bonding between paper layers
- Smooth and stable winding operation
- Suitable for continuous industrial production
- Easy operation and maintenance
- Reduced material wastage
- High production efficiency
- Low manual intervention
- Customizable according to required core size and application
Production Process
Paper Roll Unwinding Adhesive Application Spiral Paper Winding Core Formation Pressing & Sizing Cutting Finished Core Collection
Applications
The spiral paper cores manufactured by this machine are widely used in:
- Textile and yarn industries
- Paper and printing industries
- Plastic film and flexible packaging
- Adhesive tape manufacturing
- Aluminium foil and stretch film
- Label and printing applications
- Tissue and paper products
- Packaging industries
- Industrial winding applications
Advantages
The 1000 Kg/Hr Spiral Paper Core Machine provides high productivity, reliable performance, and consistent product quality. It is an ideal solution for manufacturers looking to increase production capacity while reducing labour requirements and operating costs.
Technical Highlights
- Production Capacity: Up to 1000 Kg/Hr
- Machine Type: Spiral Paper Core Making Machine
- Winding Type: Spiral Winding
- Operation: Continuous Industrial Production
- Product: Spiral Paper Core / Paper Tube
- Application: Paper, Textile, Packaging, Film & Tape Industries
- Construction: Heavy-Duty Industrial Design
- Customization: Available as per required core diameter, wall thickness, and length
Advanced Technology for Precision Manufacturing
Utilizing PLC control, automatic gluing, and heavy-duty gear motors, this spiral paper core machine offers both precision and efficiency in core production. The system's customizable settings ensure adaptability, enabling production of various lengths and diameters to suit diverse industrial needs with minimal manual supervision.
Built for Efficiency and Safety
With a production capacity of 1000 kg per hour and ergonomic operator requirements, the machine streamlines manufacturing while prioritizing operator safety. Emergency stop and overload protection systems help minimize risks, and the low noise operation ensures a comfortable working environment.
Expert Support and Flexible Application
Onsite installation and in-depth training simplify the integration process for your team. Designed for versatile core applications-such as textile cones, paper tubes, and film or label rolls-the rugged construction ensures long-term reliability, whether for small batches or high-volume production.
FAQ's of 1000 kg/hr spiral Paper Core Machine:
Q: How does the automatic gluing system in the spiral paper core machine function?
A: The machine's automatic gluing system precisely applies adhesive along the paper plies during the winding process, ensuring consistent bonding and high-quality core production with minimal manual intervention.Q: What types of paper cores can this machine produce, and for which industries?
A: This machine produces spiral paper cores with diameters ranging from 20 mm to 200 mm and lengths up to 1000 mm, suitable for applications such as textile cones, paper tubes, film rolls, and label rolls in the paper, textile, and packaging industries.Q: When should onsite installation and training be expected after purchase?
A: Onsite installation and comprehensive operator training are typically arranged promptly after purchase, coordinated according to your facility's schedule, to ensure efficient commissioning and fast start-up.Q: Where can the machine be installed, and what are the space requirements?
A: The spiral paper core machine can be installed in standard industrial settings, requiring a space of approximately 2250 mm by 1500 mm with a height clearance of 1800 mm, and access to a 380V/415V, 3-phase, 50Hz power supply.Q: What are the key steps in the spiral paper core manufacturing process with this machine?
A: Paper plies are loaded and accurately glued via the automatic system, then spirally wound around a mandrel, cut to customized lengths (50 mm-1000 mm), and finished for a smooth surface using integrated finishing mechanisms.Q: How easy is the operation and maintenance of the machine for the operator?
A: Designed for efficient operation, the machine requires only one operator thanks to its automated systems and intuitive PLC control panel. Regular maintenance mostly involves basic checks of the gluing and drive components.Q: What advantages does the machine offer over manual or semi-automatic alternatives?
A: This automatic spiral paper core machine delivers higher output (up to 1000 kg/hr), consistent core quality, reduced labor requirements, lower noise (80 dB), customizable production, and enhanced safety features, making it a superior choice for industrial applications.
