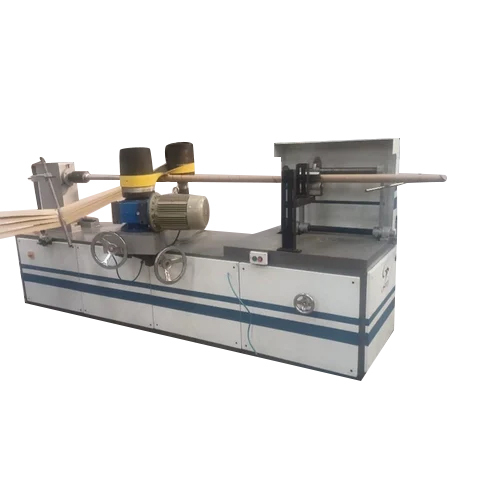

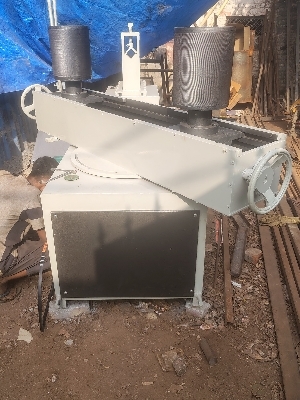

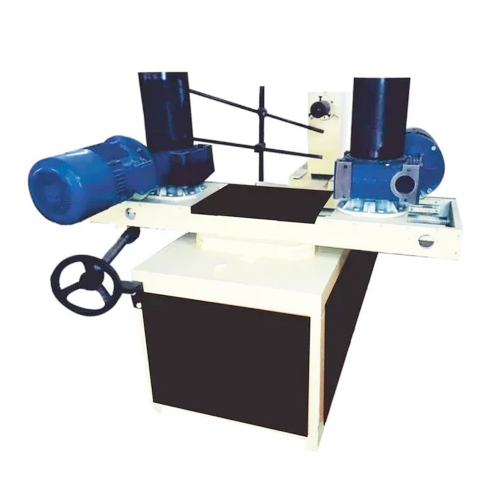

Spiral paper tube machine

Name: Spiral paper tube machine
Brand: Nikky Consultant & Engineering
Price: 20000.0 INR
Availability: InStock

Price 20000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Spiral paper tube machine Specification

Grade
Industrial

Type
Automatic Spiral Paper Tube Machine

Material
Mild Steel Body, Heavy Duty Rollers

Capacity
500-1000 Tubes/Hour

Computerized
No

Control System
Manual/PLC Control (optional on request)

Cutting Speed
20-50 tubes/min (variable depending on tube diameter and thickness)

Cutting Size
Customizable, typically 25mm to 3000mm tube length

Cutting Thickness
1mm - 8mm

Voltage
220/380V, 50Hz

Power
2.5 kW

Weight (kg)
Approx. 600 kg

Dimension (L*W*H)
1750mm x 900mm x 1350mm

Color
Grey/White (as per photograph)

Safety Features
Emergency stop, Overload protection

Glue System
Automatic glue feeding and application

Motor Type
Heavy-duty induction motor

Application
Paper tube for textile, packaging, and industrial uses

Mandrel Diameter Range
10mm to 150mm

Humidity Resistance
Suitable for high humidity environments

Tube Type
Round or spiral tubes

Operation Mode
Continuous running

Noise Level
Less than 75 dB

Roll Stand
2-ply or 3-ply unwinding

Spiral paper tube machine About

A 300 kg/hr Paper Core Machine is designed for efficient production of paper cores with a capacity of 300 kg per hour. It ensures precise winding, uniform thickness, and high durability, making it ideal for packaging and industrial applications. This machine optimizes productivity while minimizing material waste and manual effort.

Efficient Tube Production Every Time

Maximize your workflow with the automatic Spiral Paper Tube Machine, capable of producing 500 to 1000 tubes per hour. Customizable cutting lengths and adjustable speed ensure great flexibility for different industrial requirements. The continuous operation mode and durable construction guarantee high uptime and consistent performance.

Advanced Glue Application System

Benefit from automatic glue feeding and precise application that enhances tube bonding strength and reduces manual intervention. The efficient glue system, combined with heavy-duty rollers, produces strong and reliable tubes suitable for various applications, from textiles to packaging.

Engineered for Safety and Durability

Safety features such as emergency stop and overload protection offer peace of mind during operation. Designed with a mild steel body and resistance to humidity, the machine remains reliable even in challenging industrial environments.

FAQ's of Spiral paper tube machine:

Q: How does the automatic glue system work on this spiral paper tube machine?

A: The machine features an integrated automatic glue feeding and application system. This system consistently distributes glue onto paper plies as they unwind, ensuring even adhesion and minimizing manual handling during tube formation.

Q: What types and sizes of tubes can be produced with this machine?

A: You can produce both round and spiral tubes with mandrel diameters ranging from 10mm to 150mm, thickness between 1mm and 8mm, and customizable lengths from 25mm up to 3000mm.

Q: When is this machine suitable for use in high humidity environments?

A: Thanks to its humidity-resistant construction and components, this machine is designed for reliable operation even in environments with elevated moisture, making it ideal for mills or factories subject to varying climate conditions.

Q: Where is the machine typically installed?

A: It is commonly installed in industrial facilities involved in textile, packaging, paper conversion, and other manufacturing sectors that require efficient production of paper tubes.

Q: What is the process of operating this spiral paper tube machine?

A: The process involves loading paper rolls onto the 2-ply or 3-ply stand, setting the mandrel for the required diameter, and configuring operational parameters. Glue is automatically applied as the machine unwinds the paper, forms, and cuts tubes according to preset specifications.

Q: How does the machine ensure user safety during operation?

A: Safety features include an emergency stop and overload protection, which help prevent accidents and equipment damage by instantly shutting down or pausing operation if abnormal conditions are detected.

Q: What are the benefits of using this machine compared to manual tube forming methods?

A: Automating the tube-making process significantly increases productivity, ensures uniform quality, reduces labor requirements, and allows variable customization-all while keeping noise levels low and providing consistent, industrial-grade performance.
